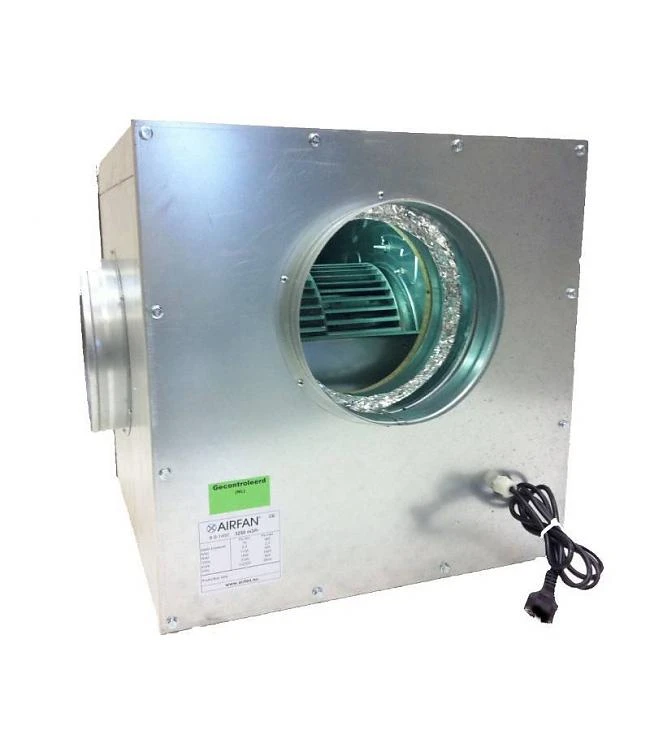

ISOBOX - Centrifugal Soundproof Fan Unit

Soundproof fan unit with steel frame and centrifugal fan with directly coupled motor, optimised for high performance and low noise.

Main Features

The ISOBOX is a professional fan unit designed for high performance with a focus on noise reduction. Its robust metal/steel casing ensures maximum durability. At the heart of the unit is a double-intake centrifugal fan with a directly coupled conventional motor. To maximise soundproofing, both the motor support and the attachment of the fan to the structure are insulated through the use of cages, buffers and anti-vibration joints.

Technical Specifications

• Maximum flow rate: 2500 mc/h
• Dimensions (W x D x H): 55 x 55 x 55 cm
• Absorbed Power (Nominal): 414 W
• Absorbed current (Nominal): 1.8 A
• Inrush power: 644 W
• Inrush Current: 2.8 A
• Extraction Flange (Output): 1 x Ø 250 mm
• Inlet Flange (Inlet): 1 x Ø 250 mm
• Weight: 27.6 kg
• Noise level: 31.9 dB

Construction Details and Reliability

• Robust metal/steel casing for maximum durability.
• Conventional motor, directly coupled to the fan.
• Centrifugal fan with double inlet.
• Motor mounted on anti-vibration joints to reduce noise.
• Suitable for domestic environments - offices
