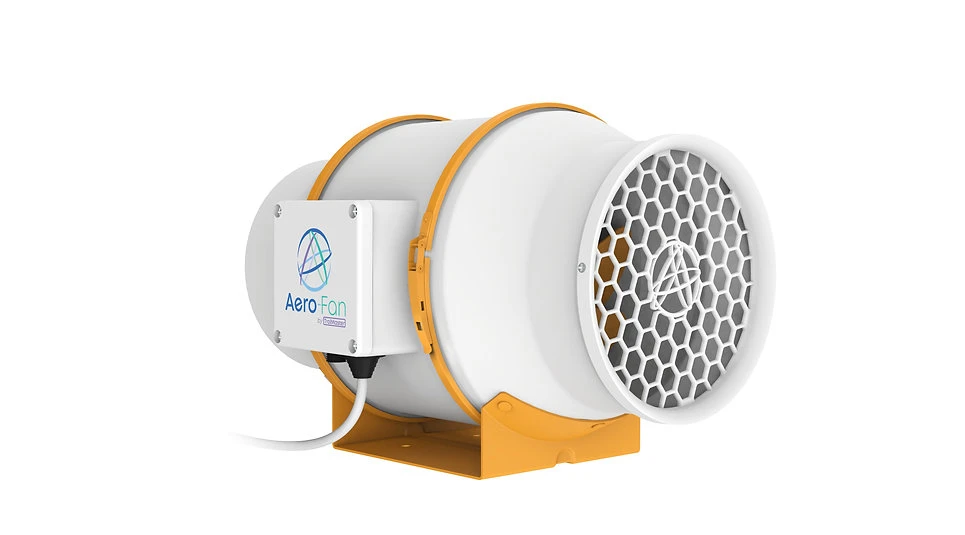

AEROFAN V6 150MM IN-LINE EXTRACTOR 610 MC/H BY TROLMASTER

The AEROFAN V6 by TrolMaster is a 6-inch in-line duct fan designed to effectively improve air circulation and ventilation in indoor environments.
Compact yet powerful, it is ideal for grow rooms, indoor greenhouses and technical spaces, where constant air exchange and optimal room quality must be maintained.

Thanks to its high-performance motor, the AEROFAN V6 is able to move a high volume of air, helping to remove stale air, excess humidity and accumulated heat.
The versatile design allows easy integration into ducting systems, making installation quick and flexible.

It is a reliable solution for those who want climate stability, energy efficiency and durability.

Important note

For use without the FRC-1 remote control, the ECS-9 cable is required for direct connection to the controller.
Compatible with centrealine HCS-2, HCS-3, TCS-1,GCS-1.

Main features

• 6" (150 mm) in-line fan

• High air flow rate up to 610 m³/h

• Efficient and quiet motor

• Ideal for extraction and air exchange

• Compact design for installation in small spaces

• Easy integration into ducting systems

• Reliable solution for grow rooms and indoor environments

• Designed for continuous operation

Technical specifications

• Model: V-6

• Operating voltage: 100-277 V AC, 50/60 Hz

• Rated current: max 1.0 A

• Power consumption: max 66 W

• Number of blades: 8

• Maximum air flow: 610 m³/h

• Maximum static pressure: 459 Pa

• Direction of rotation: anti-clockwise

• Operating temperature: -20 °C ~ +60 °C

• MTBF: 50,000 hours (at 25 °C)

• Degree of protection: IP44

• Dimensions: 12.48 × 8.89 × 5.79"

• Net weight: 2.03 kg (4.48 lb)

Advantages

• Improves air exchange and climate control

• Reduces humidity and stagnant air

• Supports more stable growing environments

• Compact, efficient and easy to install

• TrolMaster reliability for professional use
