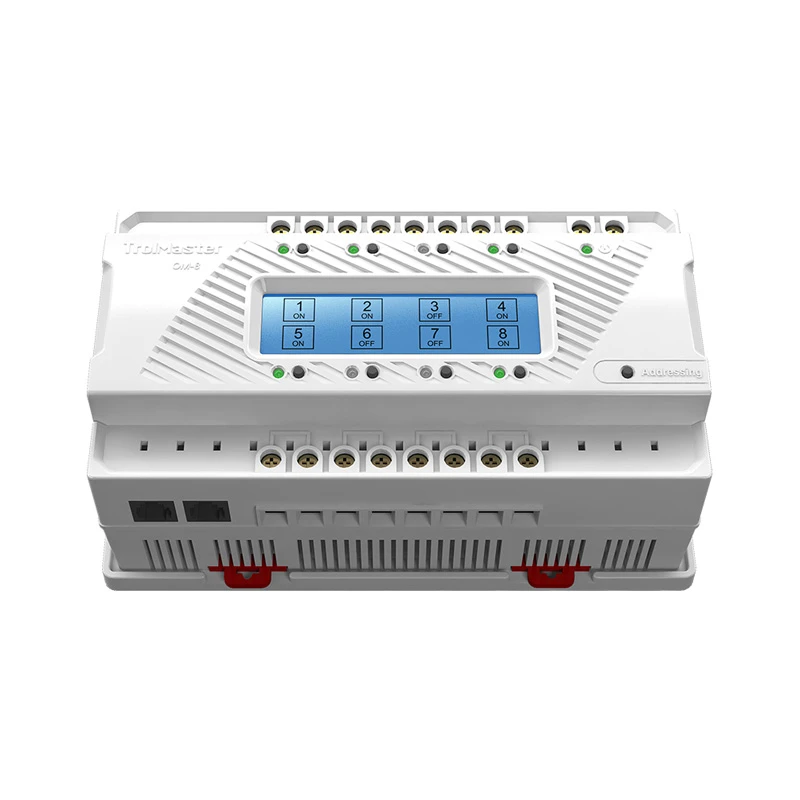

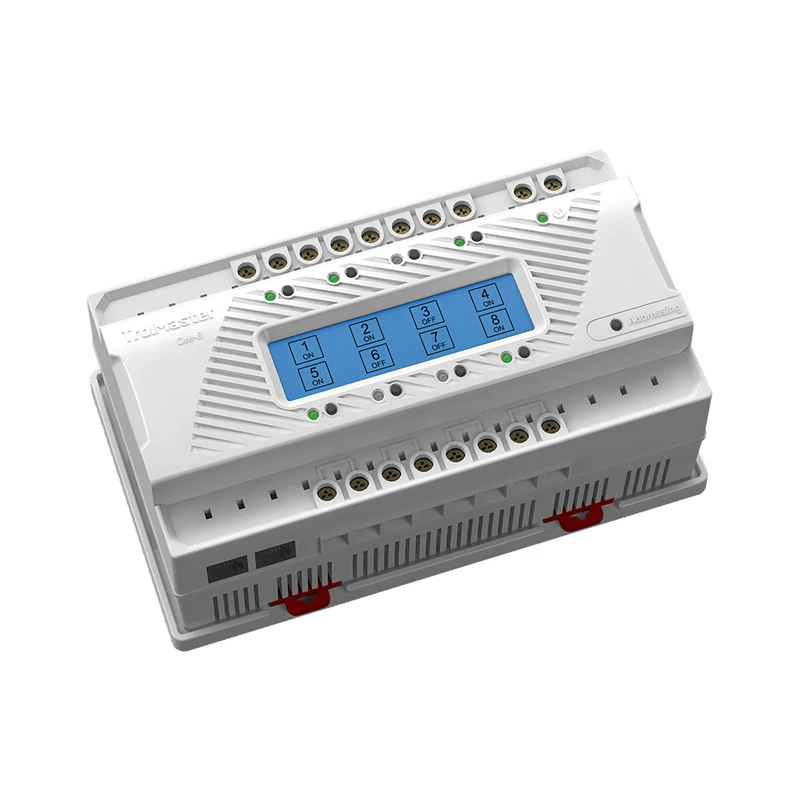

TROLMASTER - DRY CONTACT BOARD FOR NFS-2/HCS-2 | 8x 12A CONTACTS

The OM-8 dry contact board allows the main controller to control up to 8 individual outputs on it. It is specially designed for the Hydro-X Pro and Aqua-X Pro system. It has 8 individual electrical contacts and allows up to 12 Amps of current through each contact.

*The OM-8 must be mounted inside a control cabinet and connected to a power supply between 100 and 240 VAC.

*When used with the Aqua-X Pro system, the OM-8 can activate pumps/solenoids at an amperage greater than 12 A.

Main features TrolMaster OM-8 dry contact card:

• LCD display, easy to set up and use
• Easy installation
• Overload protection on each of the 8 12-amp outputs
• Each contact can be forced open or closed for a duration of 30 minutes

Technical specifications TrolMasterOM-8 dry contact board:

• Maximum relay amperage: 12 A per output
• Output working environments: temperature 32-104 ° F, humidity ≤ 90%
• Packaging dimensions: 255 mm (length) x 135 mm (width) x 95 mm (height)

• 1 x OM-8
• 1 x 16ft (4.8m) RJ12 cable
