TROLMASTER - CONTROL BOARD FOR AQUA-X | 24V
The OA6-24 control board is designed to control multiple 24vac solenoid valves. It provides a simple and efficient method to control up to 6 valves each with individual timer settings. Up to 5...
Recalculation in progress … The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides a simple and efficient method to control up to 6 valves each with individual timer settings. Up to 5 OA6-24s can be connected to a single Aqua-x providing up to 30 individually controlled outputs to be connected to the solenoid valves.
The Aqua-x can also provide a 'master pump link' by using a DSP-1 in conjunction with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic 'pump link' between the DSP-1 and OA6-24. When one of the 24vac irrigation zones is activated on the OA6-24, the DSP-1 will automatically turn on the pump.

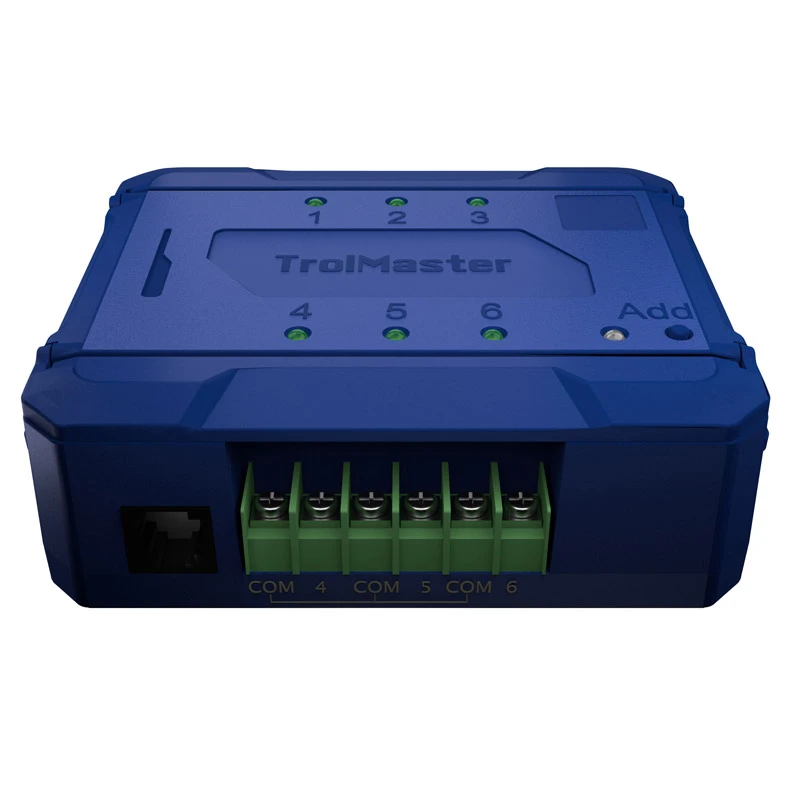

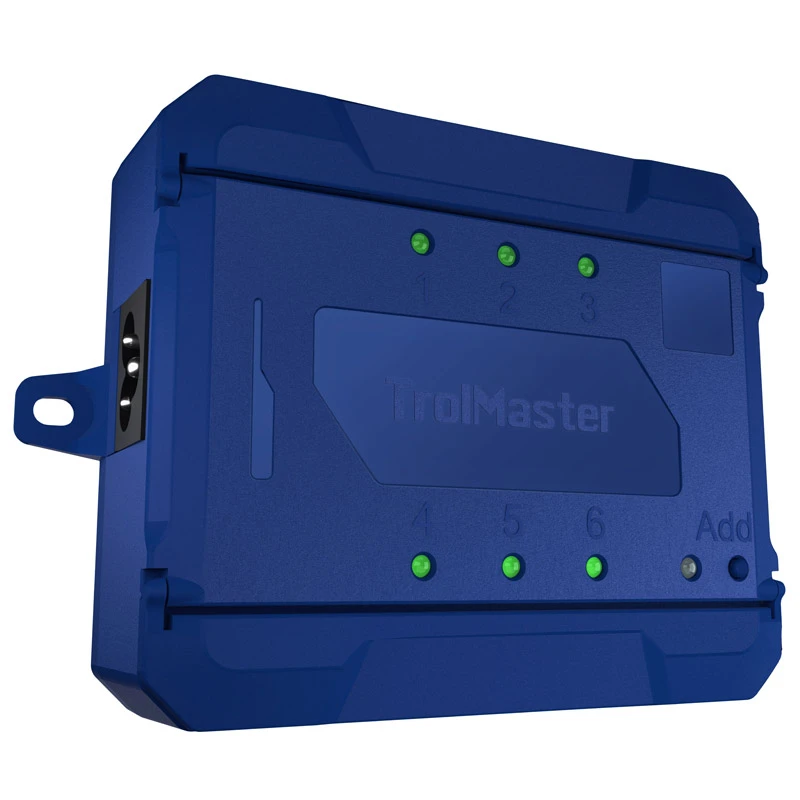

Key features TrolMaster Aqua-X control board:
- LED power indicator
- Addressing button 6 individually controlled 24V outputs
- Individual LED indicator for each output
- Twin RJ12 cable sockets for daisy-chain connectivity
Technical specifications TrolMaster Aqua-X control board:
- Input voltage: 110-240 V AC.
- Maximum input current: 0.2 A.
- Maximum output voltage/current: 24 V AC / 0.2 A per output
- Operating environments: Temperature 32° -122° F, humidity = 90%.

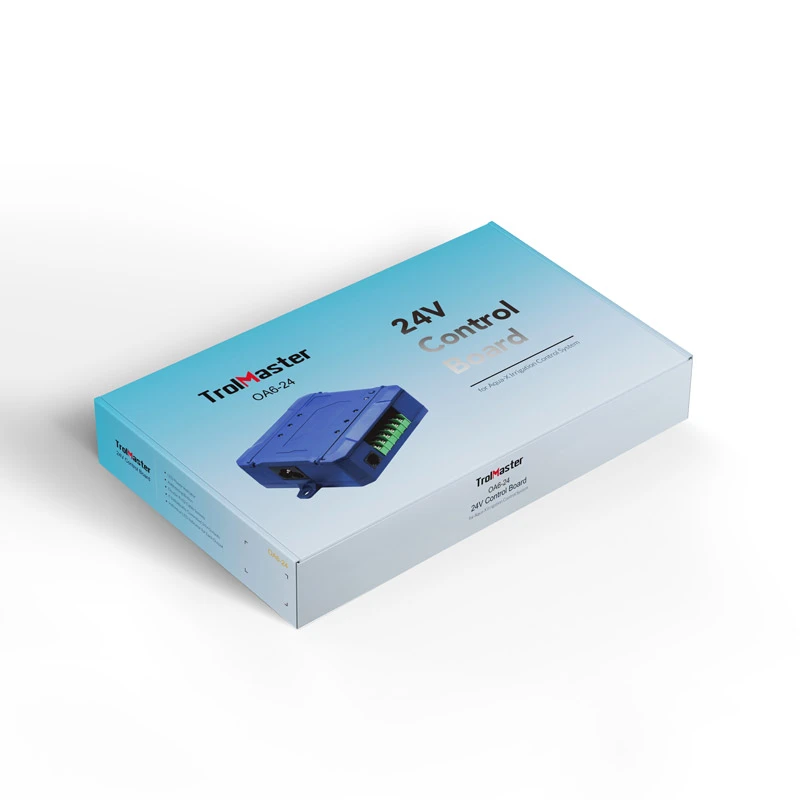

- Packaging dimensions: 275 mm (W) x 164 mm (L) x 40 mm (H)

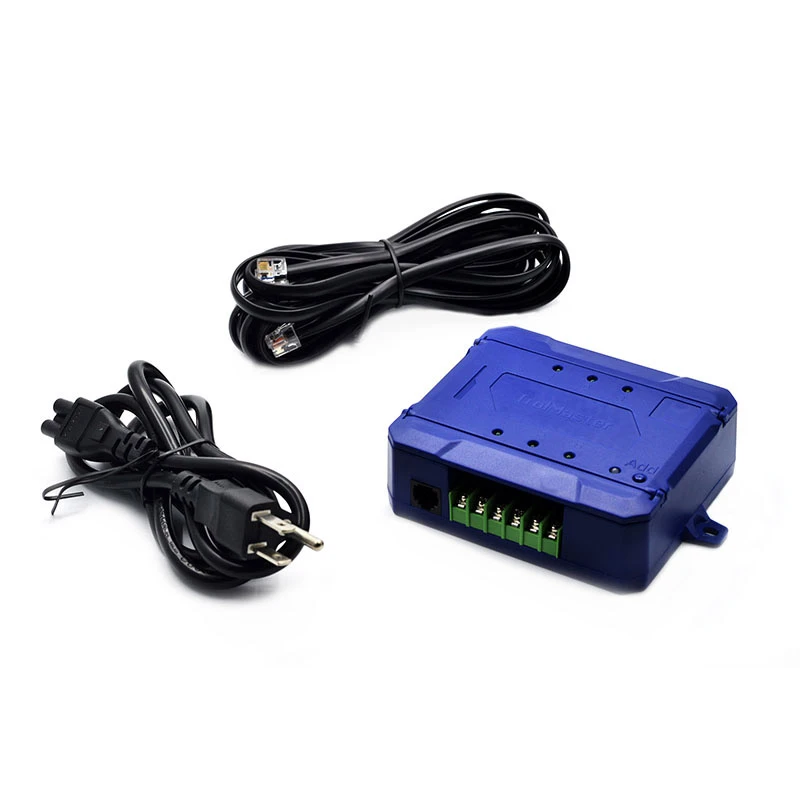

Package contents:
- 1 x 24V control board
- 1 x 16 feet (4.8m) RJ12 cable
-
