VKOM1Z200 - AXIAL IN-LINE FAN Ø 200 MM - AC MOTOR

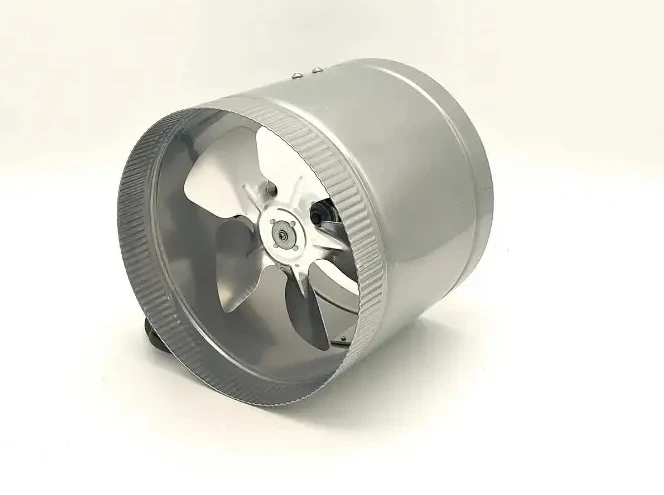

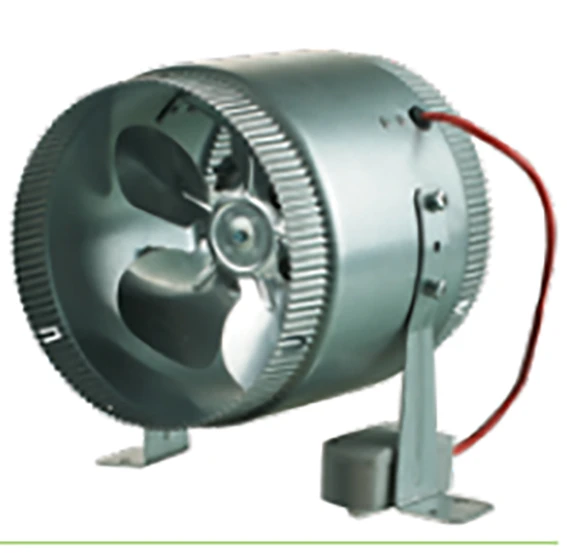

The Vents VKOM 200 is an axial in-line fan designed for installation in air ducts (ducted ventilation). Due to its compact size, efficiency and quiet operation, it is ideal for residential or commercial applications requiring a constant air exchange with a moderate pressure drop.

Main technical characteristics

Dimensions and overall dimensions

The external dimensions are given in the data sheet:

• Ø D (outside diameter) = 345 mm

• B (width) = 395 mm

• Total length (L) = 255 mm

• Motor part (L1) = 25 mm

• Overhang/end part (L3) = 40 mm

Advantages and strengths

• Compact, linear design: fits easily into ducting without requiring extra space.

• Quiet: only 46 dB(A) at 3 metres, suitable for environments where noise must be contained.

• Mounting versatility: can be installed horizontally or vertically depending on the layout of the system.

• Resistant materials: painted steel body, aluminium impeller.

• Integrated protections: IP rating and motor with thermal protection.

• Suitable for applications with 'normal' air (not hot and not with high impurities) in the defined temperature range.

Limits / Warnings

• Not suitable for air with temperatures above +40 °C.

• Not designed for high pressure loads: if the system has significant pressure drops, it may not guarantee the desired flow rate.

• Therefore, it is not designed for 'chimney / hot flue gas ventilation' use.
