Available

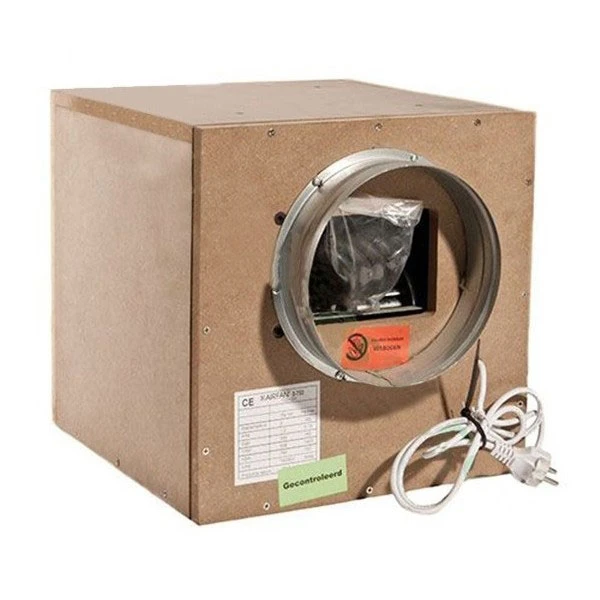

SOUNDPROOFED BOX EXTRACTOR FAN 2500MC/H MDF SOFTBOX DIAMETER 250MM EXTRACTION
Cod. AFWS9990013MS
Brand: AIRFAN
Soundproof SOFTBOX fan units consist of the MDF case and the centrifugal fan with directly coupled electric motor.
Features:
- Flow rate 2500mc/h
- Absorption 1.8A
-...
Standard price
€406,27 VAT included(22%)
Recalculation in progress …
Soundproof SOFTBOX fan units consist of the MDF case and the centrifugal fan with directly coupled electric motor.
Features:
- Flow rate 2500mc/h
- Absorption 1.8A
- Starting current: 2.8A
- Consumption: 414W
- Starting current: 644W
- Dimensions 55x55x68
- Extraction flange: 250mm
- Inlet flange: 250mm
- Case structure in MDF panels
- Directly coupled conventional motor
- Special motor support cages and anti-vibration buffers
- Double inlet centrifugal fan
- Fastening of the fan to the structure by means of anti-vibration joints
Features:
- Flow rate 2500mc/h
- Absorption 1.8A
- Starting current: 2.8A
- Consumption: 414W
- Starting current: 644W
- Dimensions 55x55x68
- Extraction flange: 250mm
- Inlet flange: 250mm
- Case structure in MDF panels
- Directly coupled conventional motor
- Special motor support cages and anti-vibration buffers
- Double inlet centrifugal fan
- Fastening of the fan to the structure by means of anti-vibration joints
-
55x68x55 cm (WxLxH)
-
